The Relax Saunas FIR Emitter Chip

The FIR Emitter Core: What's Actually Inside the "Chip"

More Than a Drilled Metal Block

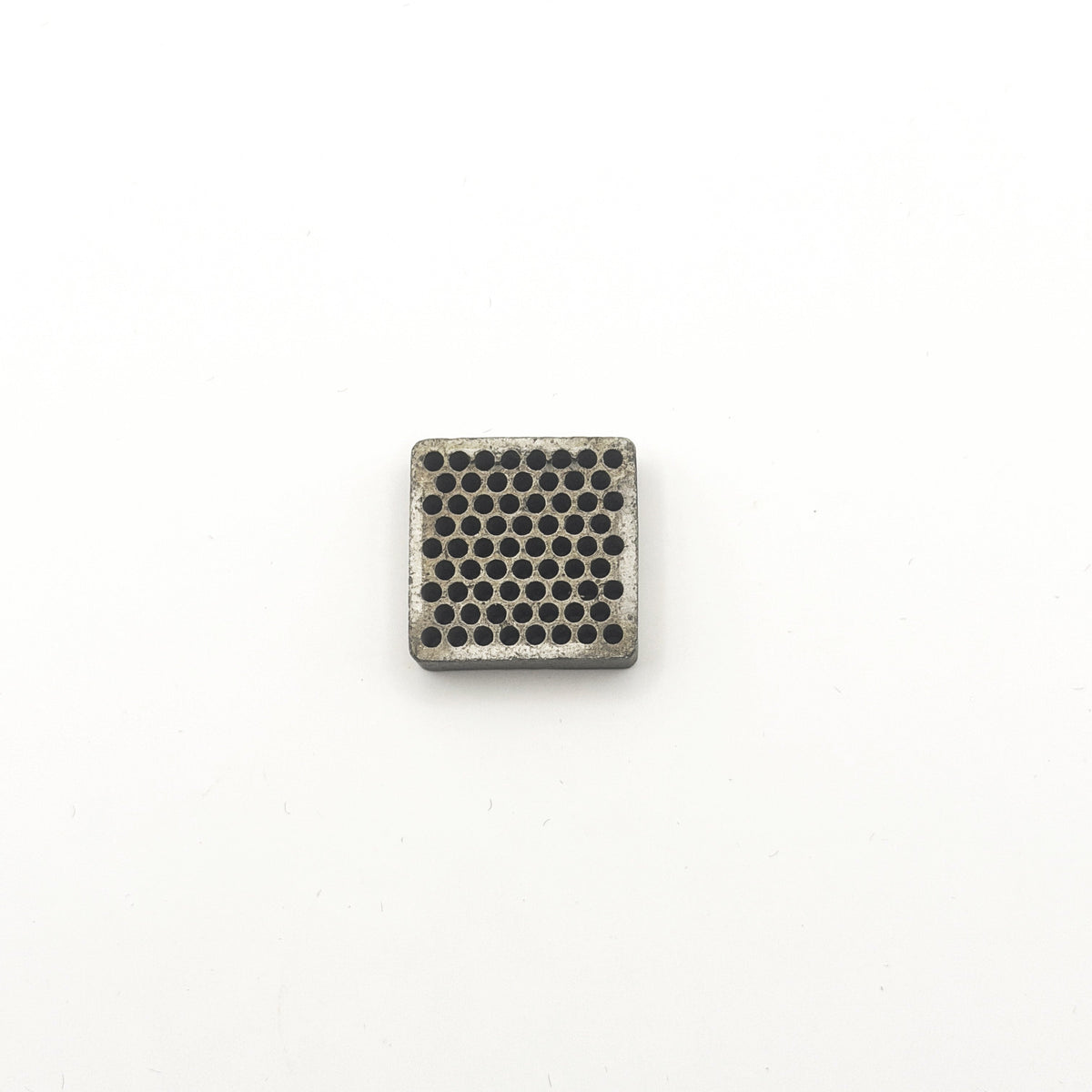

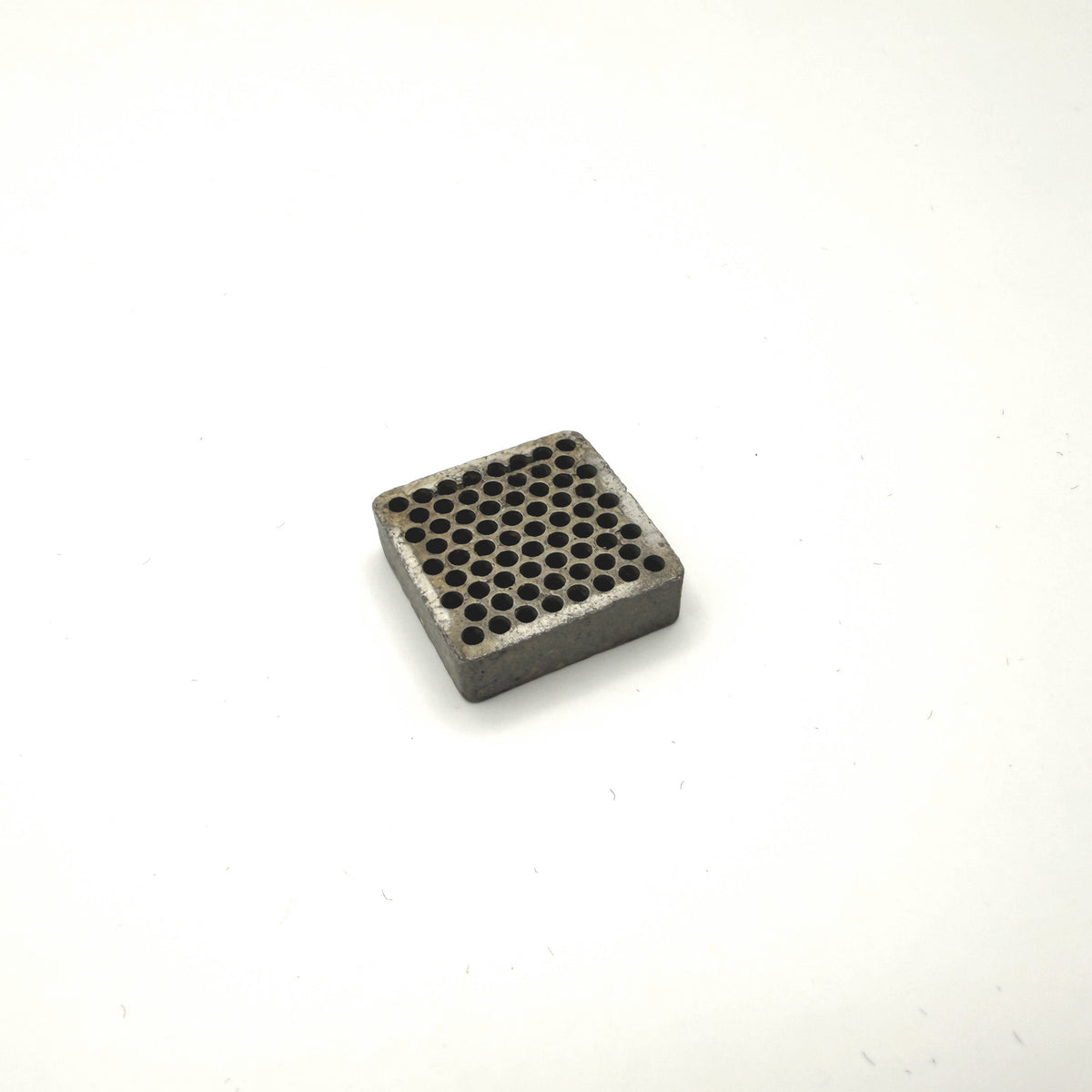

At first glance, it looks like a simple perforated metal cube — a block of drilled holes that could pass for a piece of industrial hardware. What's actually inside is a precision-engineered radiator assembly: a self-regulating PTC (Positive Temperature Coefficient) semiconductor core, housed in a thermally conductive metal shell, treated with a specialized mineral coating tuned to emit far infrared in a narrow, targeted band. Every element of its geometry — the perforations, the housing, the coating — serves a specific engineering function. Here's what each one does.

1. Surface Area Maximization — Honeycomb Architecture

Far infrared output is a function of emitting surface area. A solid, unperforated block radiates only from its outer face — a single flat plane. By machining the block into an array of hollow channels running through its body, the emitter's internal surface area increases dramatically beyond what the block's outer dimensions would suggest.

Air moves directly through these channels, which means radiant heat and far infrared photon emission happen across thousands of square millimeters of internal mineral surface — not just the exterior plane you can see. The perforated structure isn't a manufacturing shortcut or a weight-reduction measure. It's the mechanism that lets a compact block emit at the surface area of something many times its visible size.

2. Self-Limiting PTC Semiconductor Control

The functional core of the assembly is a semiconductor circuit, primarily barium titanate, with a genuine Positive Temperature Coefficient property:

• As current flows through the semiconductor, its temperature rises.
• Once it reaches a calibrated threshold, electrical resistance increases sharply — not gradually, but exponentially — which naturally throttles the current flowing through it.
• The result is a component that regulates its own operating temperature through material physics, not through an external electronic thermostat that can fail, drift, or need replacing.

The metal housing surrounding the semiconductor core isn't incidental either — it functions as thermal mass and waveguide, holding the element at the precise, stable temperature required to emit far infrared concentrated in the 4–14 micron band, rather than drifting into shorter or less useful wavelengths as the core cycles on and off.

3. The Mineral/Ceramic Coating

The metal block isn't bare metal. It carries a specialized bio-mineral composite coating — typically incorporating materials such as tourmaline, germanium, or engineered oxide formulations. When the PTC core heats the block, that thermal energy excites the mineral coating both inside and outside the perforated channels.

This is the step that does the spectral shaping. Rather than emitting as a generic blackbody radiator — a broad mix of near-infrared, mid-infrared, and simple convective heat — the coating shifts the emission peak into the narrow far infrared band that resonates with water's rotational and vibrational modes. This is the difference between "a hot piece of metal" and a tuned far infrared emitter: the coating is what converts stored thermal energy into a targeted, narrow-band photon output rather than dispersing it as generalized heat.

Why the Geometry Matters, Together

None of these three elements does the job alone. The perforated architecture without the PTC core would just be a metal block that overheats unpredictably. The PTC core without the perforations would emit far infrared, but only from a small, single-plane surface. The mineral coating without either of the above would have nothing precisely-controlled to excite. It's the combination — maximized surface area, self-regulating temperature, and spectral tuning — that produces a compact, stable, narrow-band far infrared source rather than an ordinary electric heating element that happens to run warm.

Specifications

This component is sold as a standalone emitter core for integration into far infrared applications. It is a heat- and radiation-emitting electrical component — follow standard electrical safety practices for installation, wiring, and enclosure.

Size: 5/8 inches x 5/8 inches
